Description
📝 Product Description

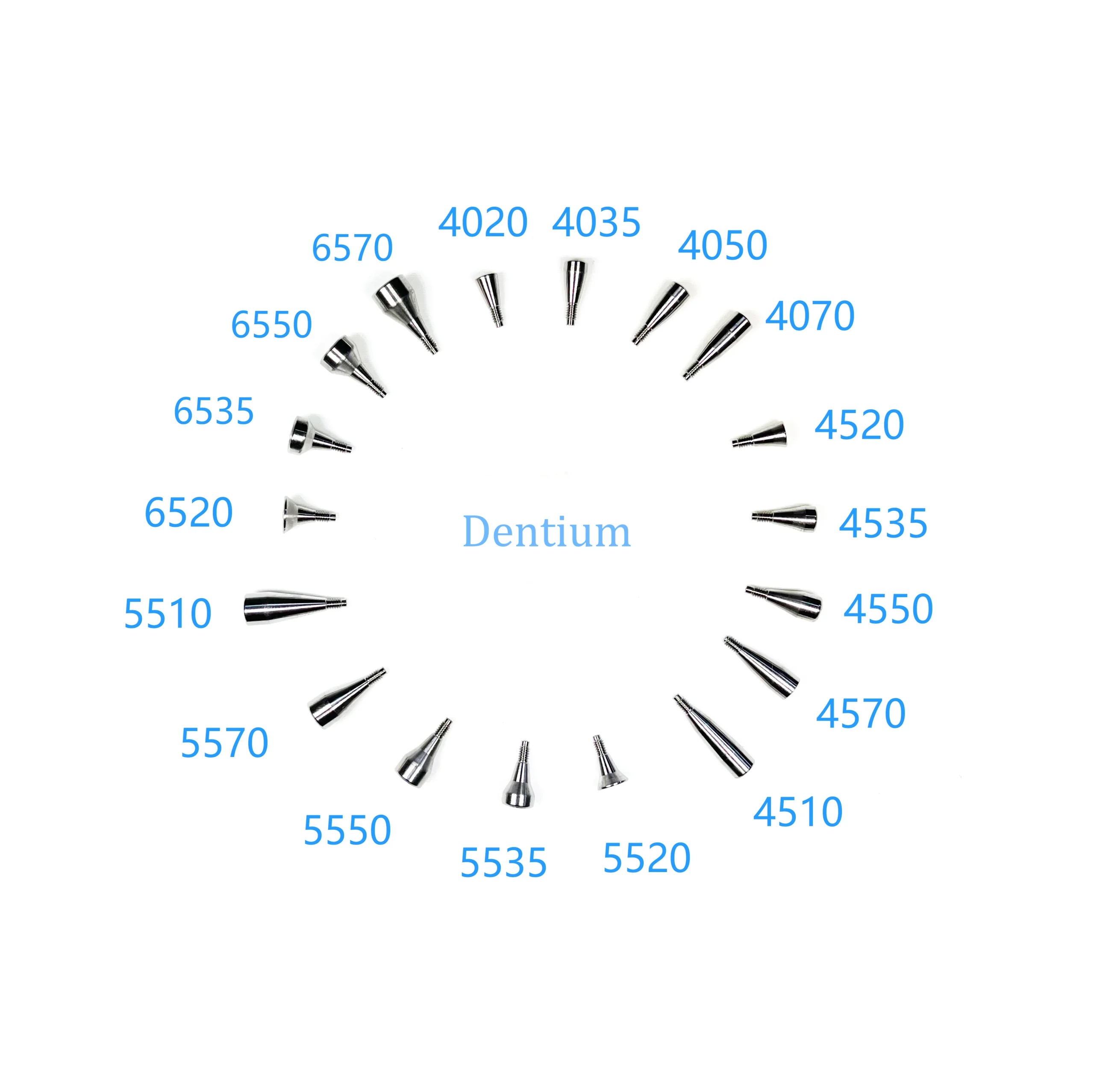

Our Healing Abutments compatible with Dentium Implant Systems are manufactured from high-grade titanium, designed for optimal soft tissue healing and precise fit. Available in various platform diameters and heights, they are engineered for stability, ease of use, and maximum biocompatibility during the implant healing phase.
🔧 Model Breakdown (Based on Standard Dental Coding)
We’ll decode the model numbers using the structure:
[Platform Diameter] + [Height]
| Model | Platform (mm) | Height (mm) |
|---|---|---|
| 4020 | 4.0 | 2.0 |
| 4035 | 4.0 | 3.5 |
| 4050 | 4.0 | 5.0 |
| 4070 | 4.0 | 7.0 |
| 4520 | 4.5 | 2.0 |
| 4535 | 4.5 | 3.5 |
| 4550 | 4.5 | 5.0 |
| 4570 | 4.5 | 7.0 |
| 4510 | 4.5 | 1.0 |
| 5520 | 5.5 | 2.0 |
| 5535 | 5.5 | 3.5 |
| 5550 | 5.5 | 5.0 |
| 5570 | 5.5 | 7.0 |
| 5510 | 5.5 | 1.0 |
| 6520 | 6.5 | 2.0 |
| 6535 | 6.5 | 3.5 |
| 6550 | 6.5 | 5.0 |
| 6570 | 6.5 | 7.0 |
📏 Specifications
- Material: Titanium Grade 5
- Compatibility: Dentium SuperLine / Implantium / NRLine
- Connection Type: Internal Hex
- Platform Options: 4.0 mm / 4.5 mm / 5.5 mm / 6.5 mm
- Heights Available: 1.0 / 2.0 / 3.5 / 5.0 / 7.0 mm
- Sterility: Non-sterile (Autoclavable)
